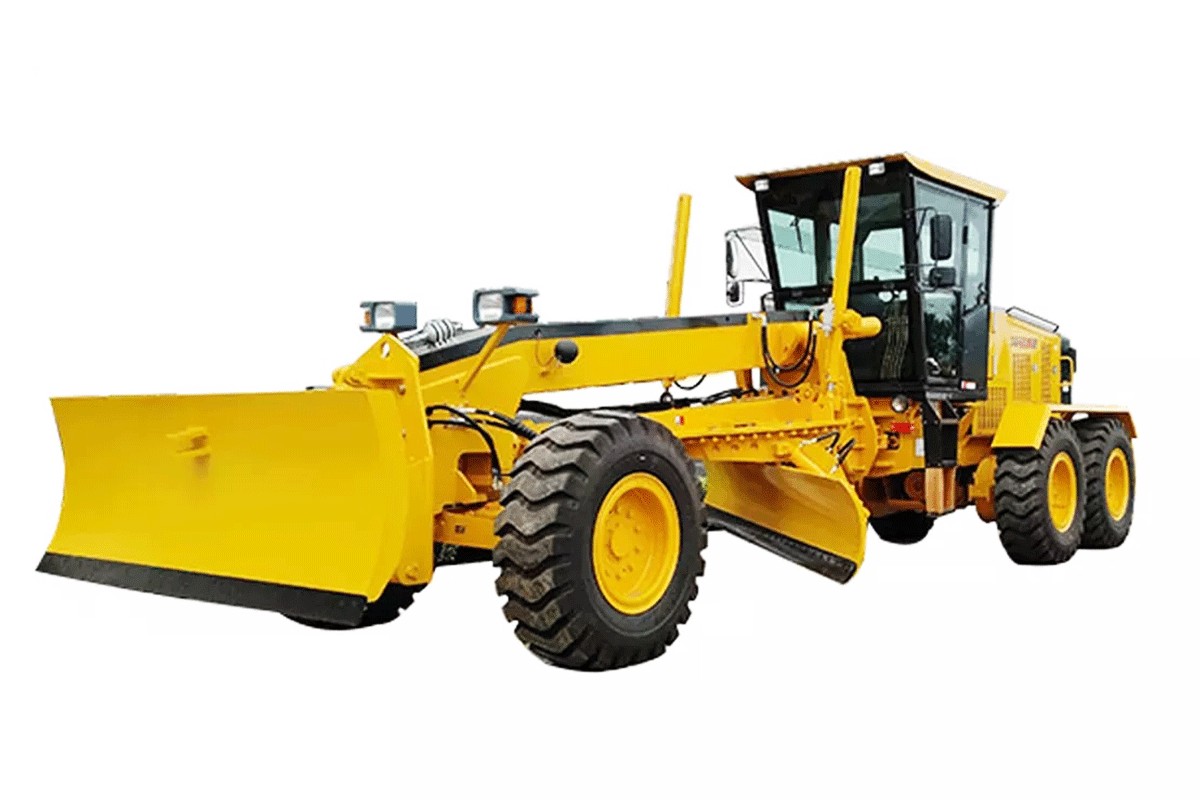

HWSG21A-3 Motor Grader
Rated Power: 160Kw
Width of Shovel Blade: 3660/3965/4270mm
Parameter
| Product name | SG21A-3 |
| Performance parameters | |
| Operating weight of machine (kg) | 16900 |
| Wheelbase (mm) | 6560 |
| Wheel tread (mm) | 2155 |
| Minimum ground clearance (mm) | 430 |
| Steering angle of front wheels (°) | ±45 |
| Articulated steering angle (°) | ±25 |
| Maximum traction force (kN) | 95 |
| Turning radius (mm) | 8200 (Outer side of front wheel) |
| Maximum gradeability (°) | 20 |
| Width of shovel blade (mm) | 3660/3965/4270 |
| Height of shovel blade (mm) | 635 |
| Blade slewing angle (º) | 360 |
| Blade cutting angle (º) | 44-91 |
| Maximum digging depth of blade (mm) | 500 |
| Length (mm) | 9430 |
| Width (mm) | 2600 |
| Heigh (mm) | 3400 |
| Engine | |
| Engine model | 6CTAA8.3-C215 |
| Emission | China-II |
| Type | Mechanical direct injection |
| Rated power/rated speed (kw/rpm) | 160kW/2200rpm |
| Drive system | |
| Torque converter | Single-stage single-phase three-element |
| Transmission | Countershaft power shift |
| Gears | Six forward and three reverse |
| Brake system | |
| Service brake type | Hydraulic brake |
| Parking brake type | Mechanical brake |
| Brake oil pressure (MPa) | 10 |
| Hydraulic system | |
| Working pump | Constant displacement gear pump, with flow at 28ml/r |
| Operating valve | Integral multi-way valve |
| Pressure setting of safety valve (MPa) | 16 |
| Pressure setting of safety valve (MPa) | 12.5 |
| Filling of fuel/oils/fluids | |
| Fuel tank (L) | 340 |
| Working hydraulic fuel tank (L) | 110 |
| Transmission (L) | 28 |
| Drive axle (L) | 25 |
| Balance box (L) | 2X23 |
Easy maintenance
● The structural components inherit the outstanding quality of Shantui's mature products.
● The electrical harnesses utilize seamless corrugated pipes and deconcentrators for branching, offering a high level of protection.
● The rear-mounted battery, which requires no maintenance, boasts a high power capacity.
● The essential electric and hydraulic components incorporate imported products, ensuring stable and reliable quality and exceptional reliability.
