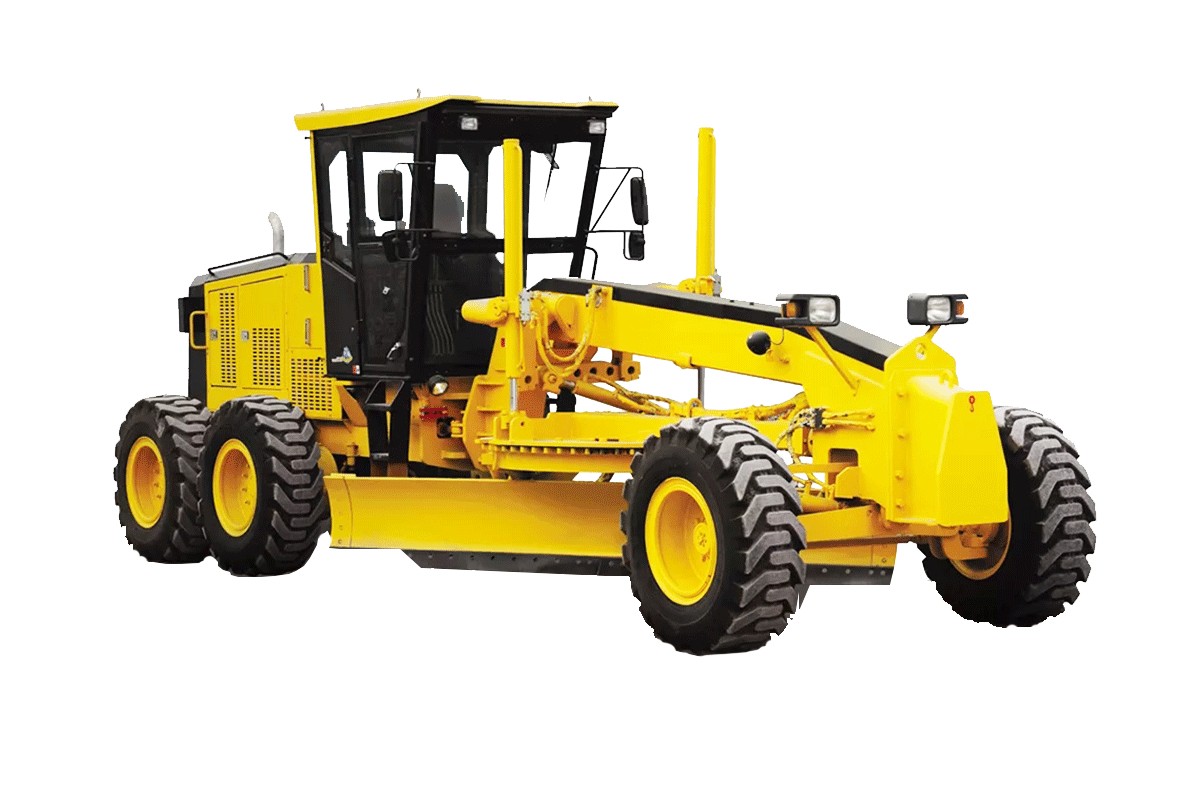

HWSG16-3 Motor Grader
Rated Power: 118Kw
Width of Shovel Blade: 3660mm
Parameter
| Product name | SG16-3 |
| Performance parameters | |
| Operating weight of machine (kg) | 15100 |
| Wheelbase (mm) | 6260 |
| Wheel tread (mm) | 2155 |
| Minimum ground clearance (mm) | 430 |
| Steering angle of front wheels (°) | ±45 |
| Articulated steering angle (°) | ±25 |
| Maximum traction force (kN) | 79.3 (f=0.75) |
| Turning radius (mm) | 7,800 (Outer side of front wheel) |
| Maximum gradeability (°) | 20 |
| Width of shovel blade (mm) | 3660 |
| Height of shovel blade (mm) | 635 |
| Blade slewing angle (º) | 360 |
| Blade cutting angle (º) | 37-83 |
| Maximum digging depth of blade (mm) | 500 |
| Length (mm) | 8726 |
| Width (mm) | 2600 |
| Heigh (mm) | 3400 |
| Engine | |
| Engine model | 6BTAA5.9-C160 |
| Emission | China-II |
| Type | Mechanical direct injection |
| Rated power/rated speed (kw/rpm) | 118kW/2200 |
| Drive system | |
| Torque converter | Single-stage single-phase three-element |
| Transmission | Countershaft power shift |
| Gears | Six forward and three reverse |
Working Adaptability
● Equipped with a power shift transmission that features 6 forward gears and 3 reverse gears, which are electro-hydraulically controlled. This transmission allows for the selection of the optimal gear based on the working road condition, ensuring the best match between traveling and operation.
● The drive axle is an integral three-segment design, internally built with an imported no-spin automatic limited slip differential. This design ensures a stable and reliable drive, providing excellent performance.
● The balance box allows for a 15° angular swing in the vertical direction, while the heavy-duty roller chain drive enhances the machine's terrain adaptability. It can effectively handle various road conditions, providing stable power output and strong drive force.
Contact us now to inquire about the best price.
