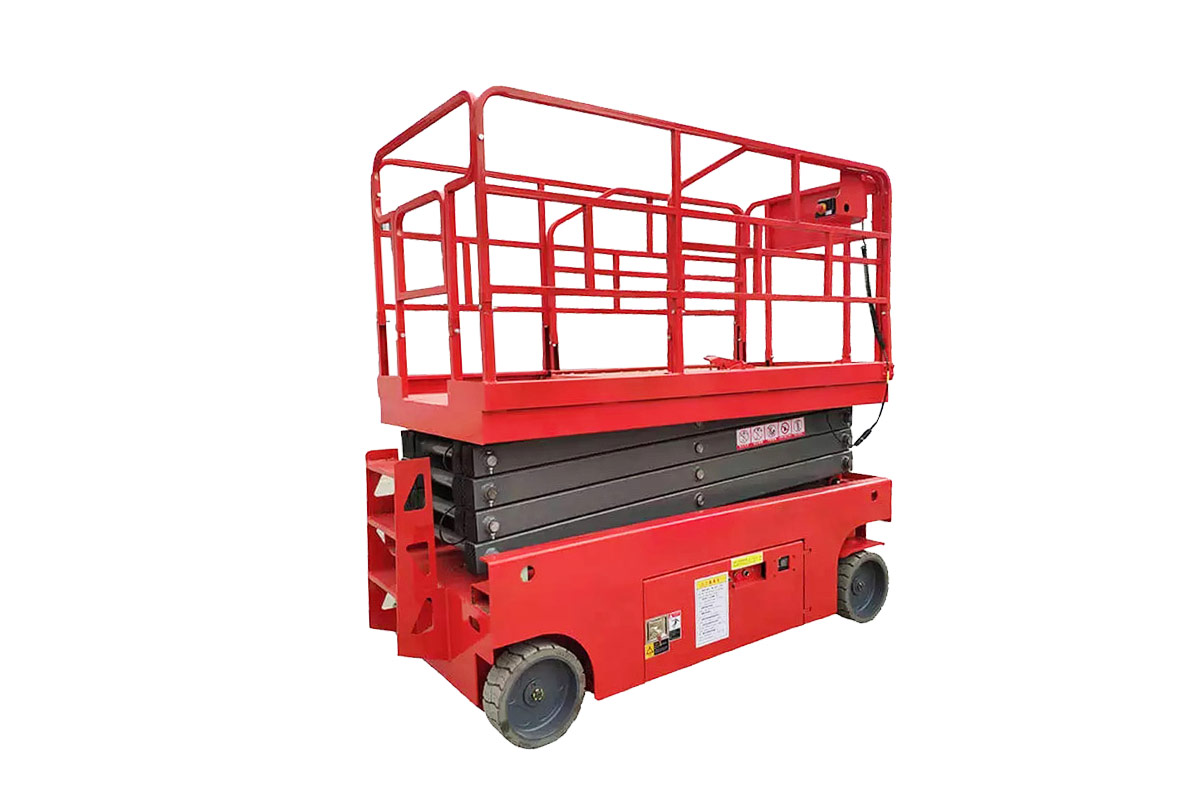

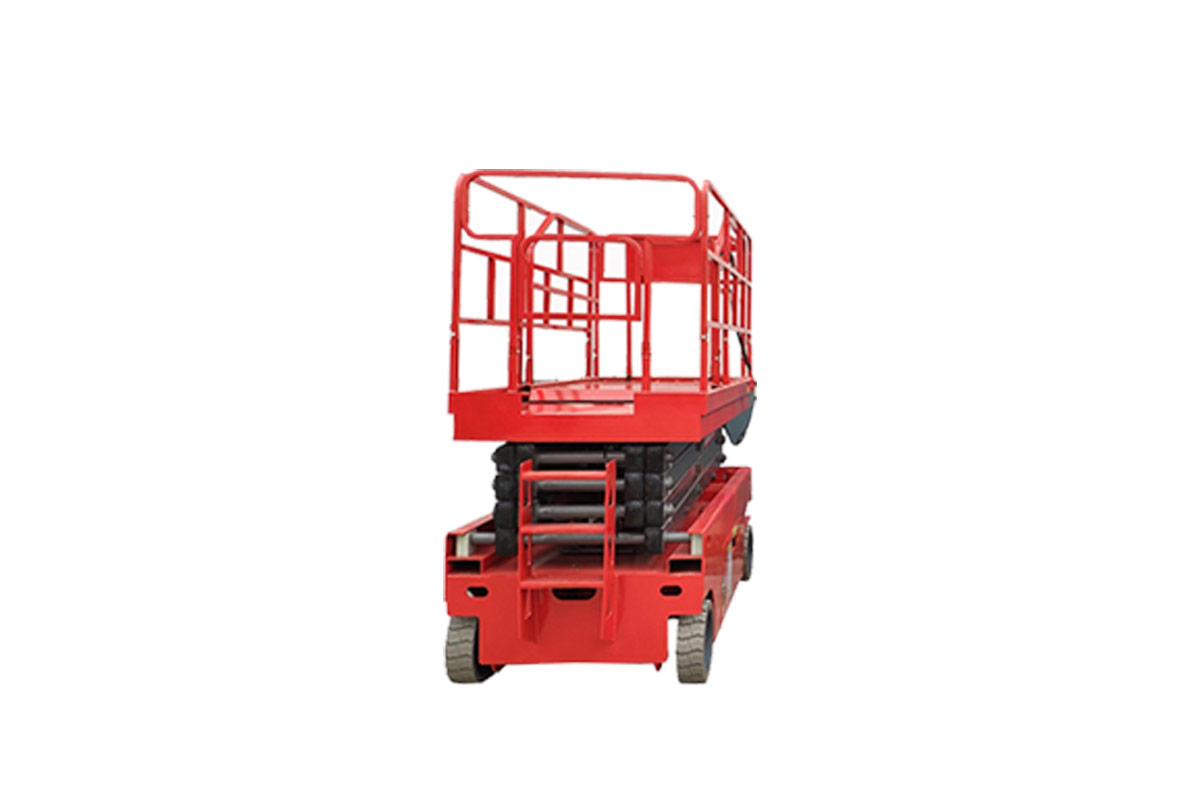

HW0.3-10 Aerial Work Platform
Working height: 12m
Platform height: 10m
The aerial work platform makes many difficult and dangerous tasks easier, such as indoor and outdoor cleaning (ceilings, curtain walls, glazing, eaves, awnings, chimneys, etc.), billboard installation and maintenance, street lights And the installation and maintenance of traffic signs. This high-altitude lifting platform is characterized by its small size, flexibility and convenience. You can use a lifting platform instead of scaffolding to reach the height you need and solve your problems. At the same time, you can save your expenses and valuable time.
The Aerial Work Platform Has The Following Features:
1.Safety certification Compliance with European certification All machines are covered by insurance.
2.scissor self-propelled aerial work platform with automatic walking function, able to walk quickly and slowly under different working conditions..Only one person can operate the machine to complete the lifting, advancing, retreating, steering and other actions in the aerial work operation, which greatly improves the working efficiency compared with the traditional hydraulic platform.Reduce the number of operators and labor intensity.It is especially suitable for a wide range of high-altitude continuous operations such as airport terminals, stations, terminals, shopping malls, stadiums, residential properties, factories and mines.
Model | HW0.3-10 |
Safe working load | 320kg |
Safe working load of extension platform | 113kg |
Maximum number of staff | 2 |
Maximum working height | 12m |
Maximum platform height | 10m |
The whole machine length | 2600mm |
The whole machine width | 1170mm |
The whole machine height ( Unfolded fence ) | 2520mm |
The whole machine height (fence folding ) | 1820mm |
Working platform size ( length * width ) | 2400mm*1170mm |
Platform extension size | 0.85m |
Minimum ground clearance ( Collapsed state ) | 0.7m |
Minimum ground clearance ( Lifting state ) | 0.019m |
Wheelbase | 1.89m |
Minimum turning radius (Inside wheel ) | 0 |
Minimum turning radius ( Outside wheel) | 2.20m |
