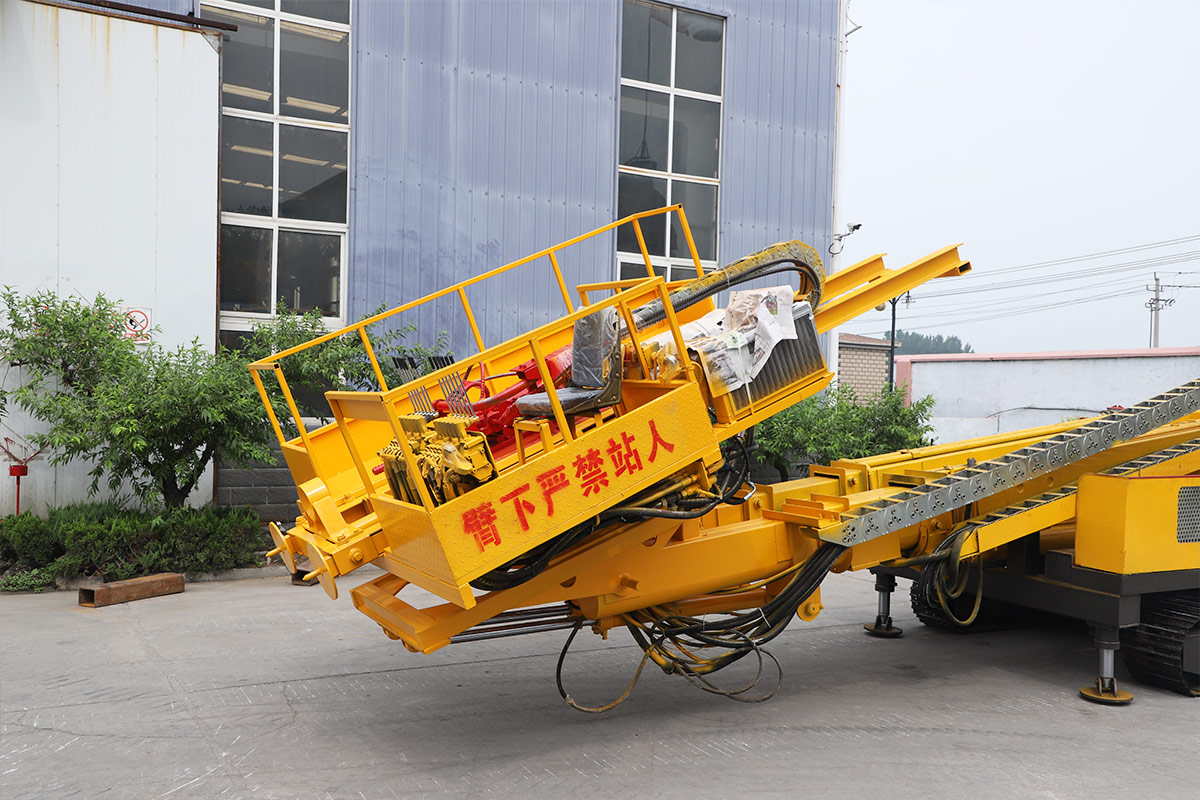

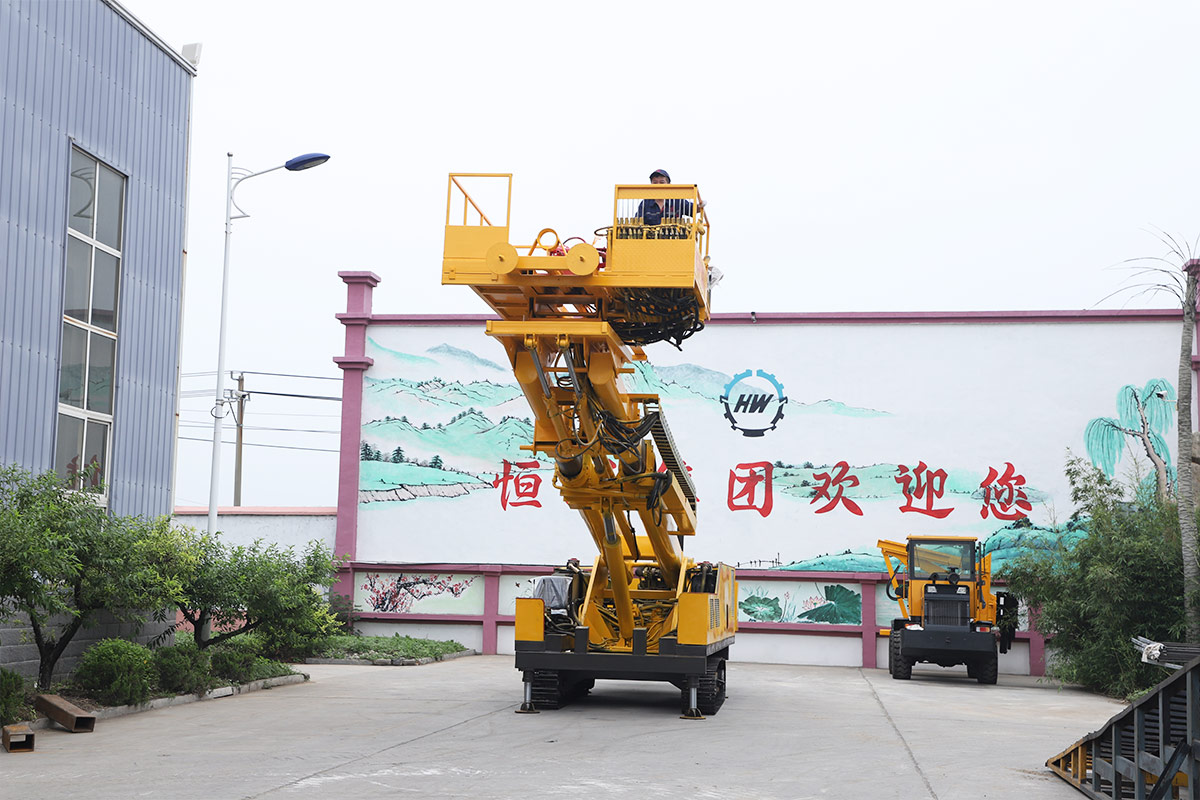

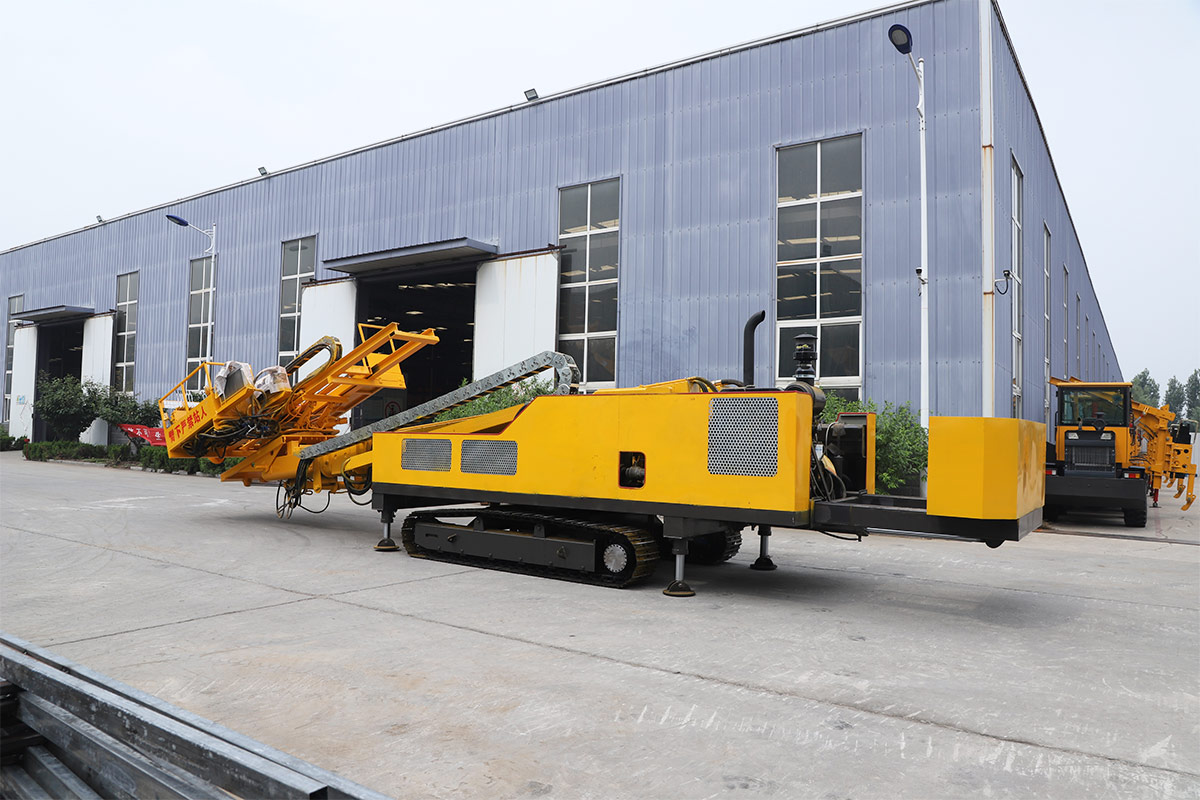

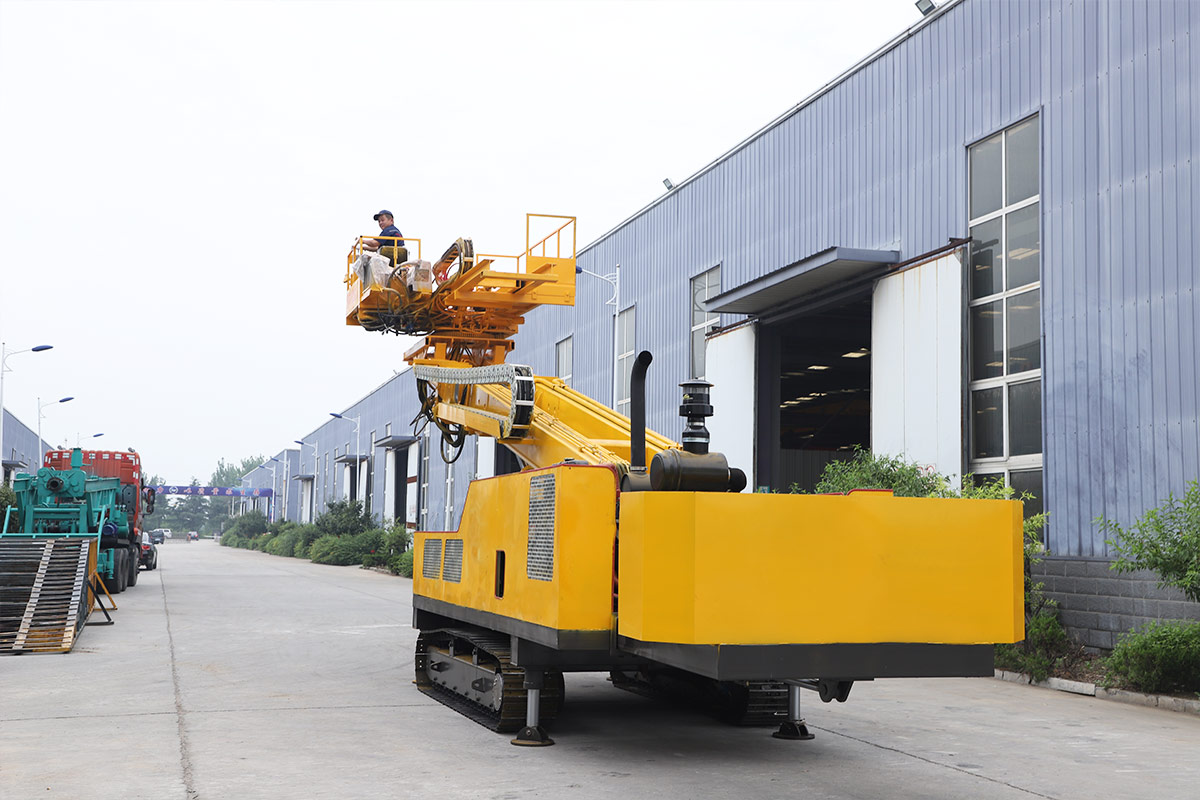

HWMG-12M Anchoring Drilling Rig
Drill depth (m): 0-50m
Drilling angle: 0-90°
The crawler rock drill is a new, efficient and fast mechanized hydraulic drilling equipment independently developed and manufactured by our company. The drilling speed is fast, the movement is convenient, and it can drill soil and rocks. It is suitable for foundation pit slope protection and other environments. According to the customer's construction environment, different heights of the drilling rig can be customized.
The drilling rig adopts full hydraulic control mode and crawler walking device, which has the characteristics of high efficiency, specificity, and fast reaming speed.
Features:
1. Reliability, practicality, and portability: The drilling rig is designed with a focus on these principles to ensure a reliable, practical, and portable solution for drilling operations.
2. Stable performance and long service life: The drilling rig exhibits stable performance, ensuring consistent and reliable operation. It is built to withstand demanding conditions and has a long service life.
3. Lightweight design: To enhance maneuverability, most components of this model are made of alloy steel to reduce weight without compromising drilling capacity.
4. Split structure for easy relocation and installation: The rig features a split structure, offering excellent detachability for quick and convenient relocation and installation. This allows for efficient and seamless completion of porous construction during relocation.
5. Operator-friendly design: The drilling rig is designed to prioritize operator safety and comfort. The operator can stay away from the drill orifice, resulting in a better working environment and reduced labor intensity.
6. Versatile construction capabilities: The rig is suitable for a range of construction processes, including pneumatic down-the-hole hammer drilling, casing and pipe drilling, as well as long helical drill pipe drilling.
7. Wide application range: The drilling rig is well-suited for various construction projects, such as hydropower station projects, prestressed anchor holes, drainage holes on railway and highway slopes, as well as landslide prevention and rock collapse disaster control projects.
Main technical parameters | |
Height (m) | 12 |
Track (mm) | 3200*2300 |
Track shoe width (mm) | 400 |
Turn down (°) | 360° |
Big arm | Double big arms three sections |
Motor power (kw) | 45 |

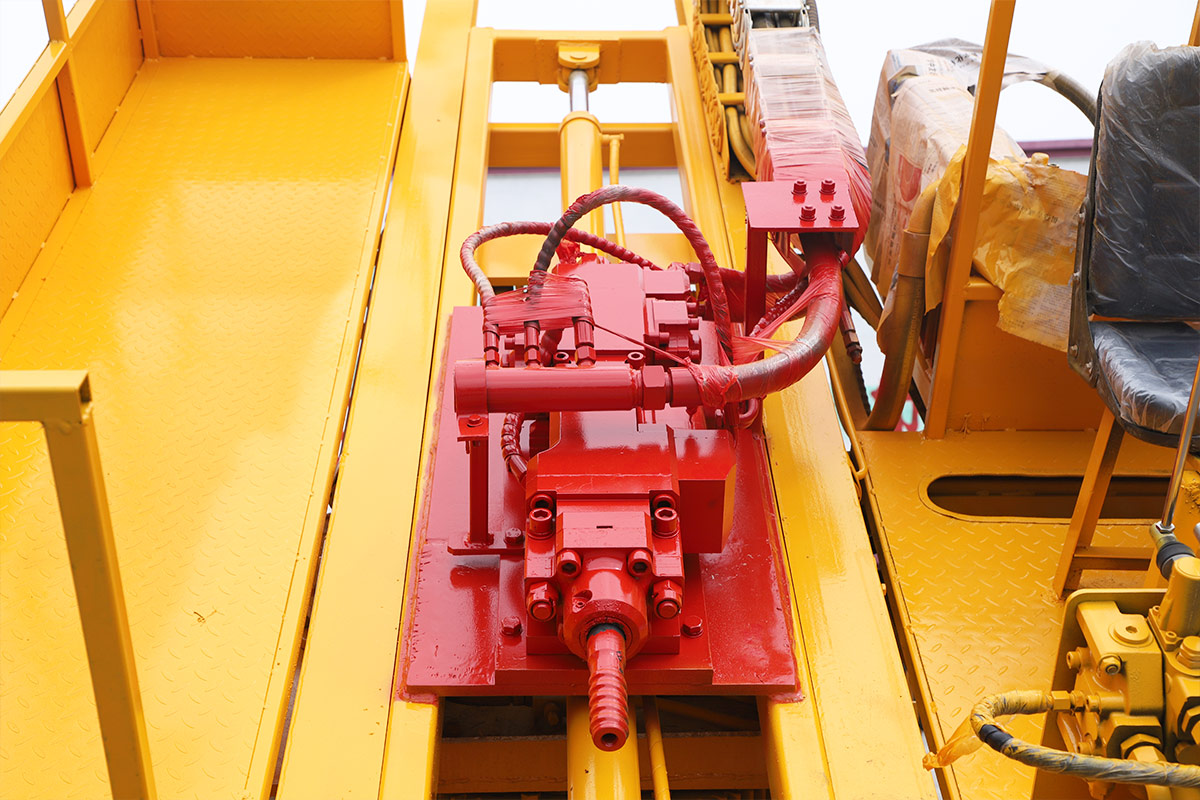

Power head model | Double hydraulic power head |
Reducer torque (N m) | 4500-7000 |
